A VHS cassette looks simple—just a plastic box with two spools inside. But that small shell holds something fragile: magnetic tape carrying irreplaceable family moments.
Inside the cassette, two reels hold a long strip of magnetic tape. A VCR pulls that tape partly out of the shell, guides it around a rotating video head and reads the picture and sound recorded on its surface.
The plastic cassette protects the tape from ordinary handling, but it does not create a sealed or permanent environment. Heat, moisture, mold, physical stress and repeated playback can affect the recording even when the outside of the cassette still looks normal.
For complete guidance on storage, handling, damage and recovery, read Heirloom’s VHS preservation guide for irreplaceable home movies.

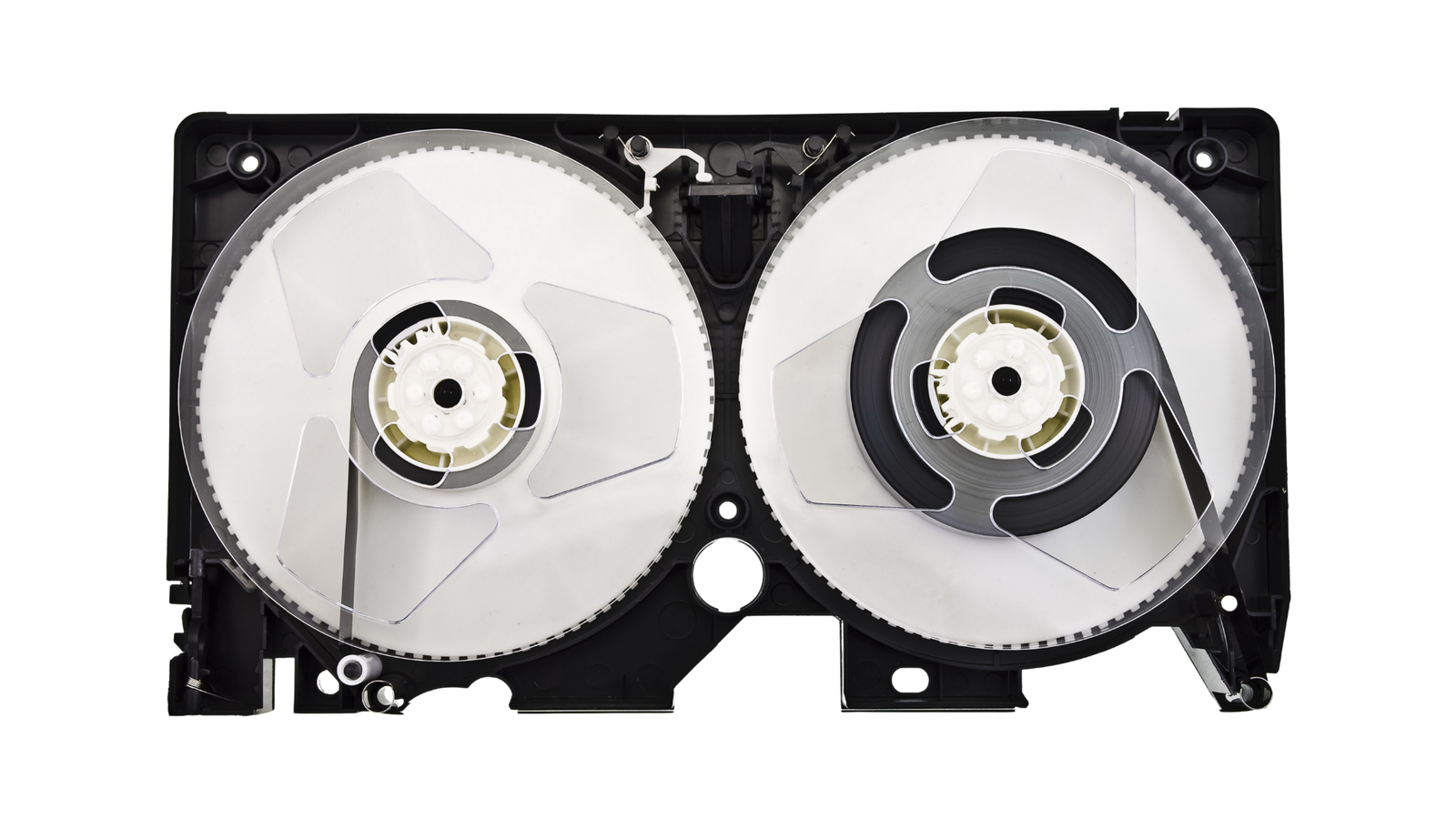

What Is Inside a VHS Cassette?
A standard VHS cassette contains several mechanical parts that must work together during playback:
- A supply reel holding the unplayed tape
- A take-up reel receiving the tape as it plays
- Thin magnetic recording tape
- Guide posts that help position the tape
- A spring-loaded protective flap
- Reel brakes that prevent unwanted movement
- Openings used by the VCR’s loading mechanism
- A record-protection tab
- A plastic upper and lower shell
- Labels and format markings
Each component has a different job, but the recording itself is stored on the magnetic tape—not in the plastic shell.
The Supply and Take-Up Reels
The two circular reels are visible through the cassette windows. Before playback, most of the tape may be wound around the supply reel. As the recording plays, the take-up reel collects it.
The tape needs to wind evenly. A loose, lopsided or irregular tape pack can create tension problems when the cassette is played, rewound or fast-forwarded.
If the tape appears uneven through the window, do not try to correct it by turning the reels with a tool.
The Magnetic Tape
VHS uses tape approximately half an inch wide. It consists of a flexible base coated with magnetic material held in place by a binder.
The VCR records changes in magnetism onto the tape. During playback, the machine reads those patterns and reconstructs the video and sound.
The tape is thin because hundreds of feet must fit inside one cassette. That makes efficient recording possible, but it also means the material can be creased, stretched, scratched or torn.
The Protective Flap
The hinged flap across the front of the cassette shields the exposed section of tape when it is outside a VCR. The player opens this flap after the cassette is inserted.
A cracked, missing or jammed flap can prevent proper loading. Do not force it open or tape it closed.
The flap protects only a small exposed section. It does not seal the cassette against humidity, dust or mold.
The Reel Brakes
When a cassette is outside the VCR, internal brakes help prevent the reels from turning freely. The player releases these brakes after the tape is inserted.
Damaged brakes can allow tape to loosen inside the shell or interfere with movement during playback. A cassette that rattles or contains visibly loose parts should be inspected before use.
The Record-Protection Tab
A small removable tab on the rear of the cassette controls whether a VCR can record over the tape. When the tab is removed, a compatible machine normally prevents accidental recording.
This tab does not protect the recording from deterioration, erasure by every possible device or physical damage. It only communicates the recording-permission setting to the VCR.

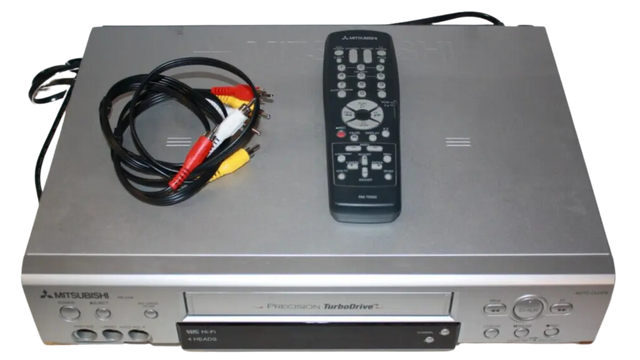

How a VCR Reads the Tape
The tape does not remain entirely inside the cassette during playback.
After the VHS cassette is inserted, the VCR’s loading mechanism:
- Opens the protective flap.
- Releases the reel brakes.
- Pulls a loop of tape out of the shell.
- Wraps the tape around a rotating video-head drum.
- Guides it past the audio and control heads.
- Moves it at the selected recording speed.
- Winds it onto the take-up reel.
The rotating video heads scan the tape at an angle. This helical-scanning system allows VHS to store more picture information than could be recorded using a stationary head alone.
Playback depends on precise movement, tension and alignment. A worn VCR or damaged cassette can disturb that relationship.
That is why a tape may produce horizontal noise, rolling video or audio problems in one machine but behave differently in another. The difficulty may involve the recorded signal, the cassette’s mechanics, the VCR or a combination of all three.
Why VHS Cassettes Deteriorate
A cassette can sit untouched for years while changes occur inside it.
The Binder Can Weaken
The binder holds the magnetic material to the tape base. Age, heat and moisture can affect that bond.
A deteriorating surface may become sticky, shed material or create excess friction as it moves through the VCR. Continuing to play a tape that is dragging or shedding can damage the recording and contaminate the machine.
Lubricants Can Change
Magnetic tape was manufactured with lubricating materials that helped it travel smoothly through the cassette and VCR. Those materials can change, migrate or become less effective over time.
A tape that no longer moves smoothly may squeal, slow down or place additional strain on the transport.
The Recorded Signal Can Become Harder to Read
The magnetic information on an old VHS tape may become weaker or less stable. During playback, this can appear as:
- Static
- Horizontal lines
- Flickering
- Color instability
- Audio dropouts
- Brief picture loss
- Difficulty maintaining tracking
These symptoms do not prove that the entire recording is lost. Suitable equipment may still recover usable video from a cassette that performs poorly in a household VCR.
Mold Can Grow Inside the Shell
A VHS cassette is not airtight. Humid storage can allow mold to grow on the magnetic tape and internal components.
Mold may appear through the cassette windows as white, gray or fuzzy material. It can also exist deeper in the tape pack where it is difficult to see.
Do not insert a visibly moldy cassette into a household VCR. Playback can spread contamination through the machine and expose other tapes played afterward.
The Plastic Shell Can Become Damaged
The magnetic recording may survive even when the cassette shell cracks, warps or breaks.
Potential shell problems include:
- A broken protective flap
- Cracks near the reel openings
- Damaged reel hubs
- Loose internal pieces
- Warping caused by heat
- A shell that will not fit correctly into a VCR
Some shell problems can be repaired or the tape may be moved into a suitable replacement shell. That work should be performed carefully because improper handling can crease or contaminate the tape.
