A Betamax tape is a compact analog videocassette developed for Sony’s Betamax recording system. It contains half-inch magnetic tape wound between two reels inside a protective plastic shell.
Families used Betamax tapes to record television, watch prerecorded programs and save personal home movies. Although the cassette protects the tape during normal handling, it cannot stop magnetic signals and physical materials from deteriorating over time.
Every consumer Betamax tape is now decades old. Even when the cassette looks normal from the outside, the recording may be affected by poor storage, contamination, mechanical damage or the shrinking supply of dependable Beta players.
For the complete history and preservation overview, read Betamax: What It Was, Why It Failed and How to Preserve Yours.

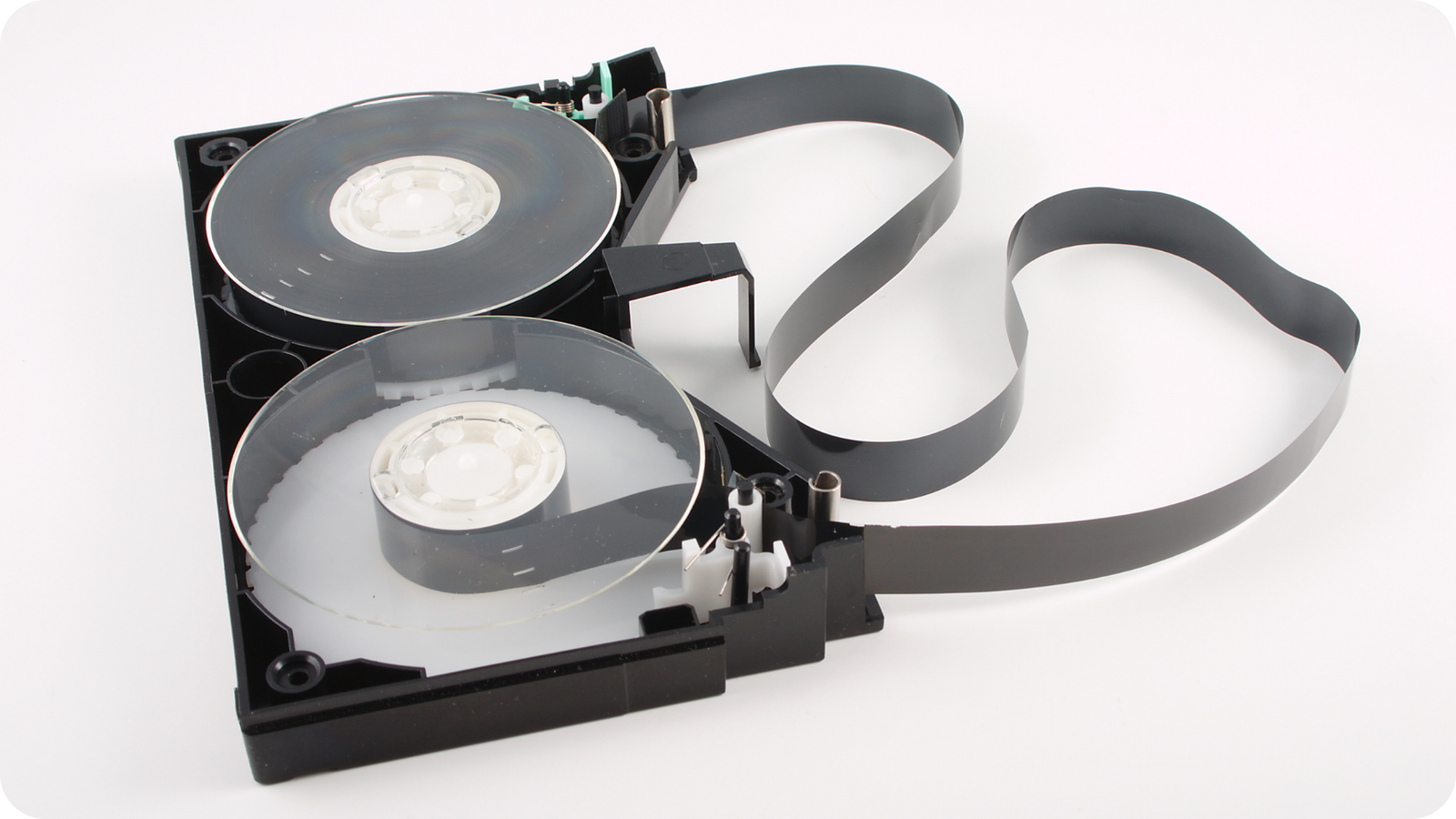

What Is Inside a Betamax Tape?
A Betamax cassette contains several components that must work together during playback:
- Magnetic recording tape
- A supply reel
- A take-up reel
- Reel hubs
- Internal guides
- A protective cassette shell
- A front flap that shields the tape
- Windows for viewing the tape pack
The magnetic tape holds the recorded picture and sound. The plastic shell protects it from direct handling and helps the player position the tape correctly.
When the cassette is inserted, the Betamax machine opens the protective flap and draws a section of tape out of the shell. The tape is guided around a rapidly rotating video-head drum while the reels control its movement.
This process requires precise tension, speed and alignment. A damaged shell, uneven tape pack or failing player can prevent the tape from moving correctly.
If you have a questionable cassette and no verified equipment, Heirloom’s Betamax tape conversion service includes inspection before approved digitization begins.
How Does a Betamax Tape Store Video?
Betamax records picture and sound as magnetic patterns on the tape.
Video requires much more information than ordinary audio. To record that information efficiently, a Betamax machine uses rapidly rotating heads to write diagonal tracks across the moving tape. This process is known as helical-scan recording.
During playback, the rotating heads follow those recorded tracks and convert the magnetic information back into video. The machine must maintain the correct:
- Tape speed
- Head speed
- Tracking position
- Tape tension
- Signal timing
A small alignment or tracking difference can create visible noise, rolling, picture loss or unstable color. The recording may play well on one machine but poorly on another—especially when the original recorder was slightly misaligned.
Betamax is an analog format. Converting the recording into a modern file requires a compatible player to reproduce its analog picture and sound while digital equipment captures the signal.
What Do Betamax Tape Numbers Mean?
Beta tape labels often include numbers such as:
- L-250
- L-500
- L-750
- L-830
These numbers identify different physical tape lengths. They do not represent an exact number of recorded minutes.
The available recording time also depends on the speed selected by the person who made the recording:
- B-I uses the fastest tape speed.
- B-II moves the tape more slowly to extend recording time.
- B-III provides the longest recording time on compatible NTSC equipment.
For example, an L-500 cassette can hold approximately one hour in B-I, two hours in B-II or three hours in B-III. An L-750 can hold approximately 90 minutes in B-I, three hours in B-II or four and a half hours in B-III.
Those times are approximate and can vary by television system, machine and cassette specification.
Slower speeds allow more content to fit on the tape, but they can also make playback more sensitive to tracking, alignment and tape deterioration. Not every player supports every speed.
What Else Can a Beta Tape Label Reveal?
The printed label may identify the cassette’s formulation or intended recording system. Common terms include:
- Beta
- Betamax
- SuperBeta
- ED Beta
- Dynamicron
- Hi-Fi
- Pro
- HG or high grade
- NTSC
- PAL
- SECAM
SuperBeta and ED Beta were later improvements within the broader Beta family. A basic Betamax machine should not be assumed to reproduce every enhanced recording correctly.
A PAL or SECAM cassette recorded outside North America may not play properly in an NTSC machine even though the cassette physically fits.
Handwritten labels may include dates, names or events, but they are not always complete. Families frequently reused cassettes, recorded several events on one tape or recorded television over part of an earlier home movie.
A cassette marked “Vacation” may contain other footage before or after the labeled event. An unlabeled cassette may still hold important recordings. The contents should be confirmed through careful playback rather than assumptions based on the case.
What Causes Betamax Tape Damage?
A cassette can deteriorate because of its environment, materials, handling or playback history.
Common risks include:
- Heat
- High humidity
- Condensation
- Mold
- Dust and debris
- Repeated playback
- Poor winding
- A damaged cassette shell
- A malfunctioning player
- Flood or water exposure
- Strong magnetic fields
Heat and humidity can accelerate changes in the tape’s binder and other materials. A poorly wound tape pack can place uneven pressure on the tape edges. A failing player can crease, stretch, scratch or pull tape from the cassette.
Warning signs include:
- White, gray or fuzzy material
- Moisture or residue
- A musty or unusual odor
- Loose tape outside the shell
- Uneven winding around the reels
- A cracked shell
- A broken front flap
- Wrinkled or folded tape
- Squealing during playback
- Tracking lines or unstable video
Do not play a cassette with possible mold. Contamination can spread through the player and affect tapes loaded afterward.
A distorted picture does not always mean the recording is permanently lost. Playback problems can also result from incorrect tracking, incompatible recording speed, dirty heads or a failing machine.
