VHS Tracking: Fixing Distorted VHS Playback

VHS tracking is the alignment between the recorded tracks on a videotape and the spinning video heads inside a VCR. When that alignment is slightly off, the picture may display horizontal static lines, flicker, jump, roll, or briefly disappear.

Sometimes you can fix distorted VHS playback with the VCR’s tracking controls. Other times, the symptoms come from dirty or worn equipment, an extended-play recording, or deterioration of the tape itself. The important question is not simply how to adjust the picture, but when continued playback could endanger an irreplaceable recording.

For a broader explanation of storage, deterioration, mold, damage, and recovery, read our complete guide to VHS preservation and protecting aging home movies.

What Is VHS Tracking?

VHS records video as a series of narrow diagonal tracks across magnetic tape. During playback, the VCR’s rotating video heads must follow those recorded tracks closely enough to read the signal.

The tracking control makes a small adjustment to that alignment. When the heads and recorded tracks align correctly, the picture becomes more stable. When they do not, you may see:

• Horizontal bands of static or “snow”
• A noisy section at the top or bottom of the picture
• Flickering or jumping
• A picture that rolls vertically
• Distorted color
• Intermittent picture loss
• Unstable or broken audio

Tracking problems were common even when VHS was the dominant home-video format. They are more frequent now because both the tapes and the machines used to play them have aged.

How to Fix VHS Tracking Problems Safely

If the cassette appears clean and undamaged, you can try several conservative troubleshooting steps.

1. Inspect the Tape Before Playing It

Look through the cassette windows under good light. Do not insert the tape if you see:

• White, gray, or fuzzy material that could be mold
• Wrinkled or folded tape
• Tape protruding from the cassette
• An uneven or loosely wound tape pack
• A cracked or warped shell
• Water staining or condensation
• Loose components inside the cassette

Do not touch the magnetic tape, open the cassette, or apply household cleaners. If the cassette smells musty, shows possible mold, or has visible physical damage, isolate it from other tapes and stop.

2. Test the VCR With an Expendable Tape

Never use an irreplaceable home movie to test a VCR found in an attic, thrift store, garage, or online marketplace.

First, use a tape you can afford to lose. Confirm that the VCR can:

• Accept and eject a cassette normally
• Play without grinding or clicking
• Rewind and fast-forward without struggling
• Maintain a reasonably stable picture
• Stop without pulling tape from the cassette

If the test cassette emerges wrinkled, creased, or partially unspooled, discontinue use immediately.

3. Let Automatic Tracking Finish

Many later VCRs automatically adjust tracking when playback begins. Allow the tape to play for several seconds before pressing additional controls.

You may see a brief period of noise while the machine searches for the best alignment. If the picture settles, no manual adjustment may be necessary.

4. Find the Manual Tracking Controls

Depending on the VCR, tracking may be controlled by:

• Dedicated Tracking + and Tracking – buttons
• Channel-up and channel-down buttons during playback
• Buttons on the original remote control
• A tracking dial or slider
• An on-screen menu

Consult the manufacturer’s manual when possible. The controls differ among VCR models, and buttons that adjust tracking during playback may perform another function when the tape is stopped.

5. Adjust Tracking in Small Steps

While the tape is playing, press one tracking button briefly and observe the picture. Continue in small increments only if the distortion improves.

If the picture becomes worse, adjust in the opposite direction. Stop when the static lines are minimized and the image is as stable as the recording permits.

Tracking is not an image-restoration control. Moving it repeatedly from one extreme to the other will not repair missing magnetic information, creased tape, mold, or a failing VCR.

6. Return to Automatic or Neutral Tracking

Some VCRs let you restore automatic tracking by pressing both tracking buttons simultaneously. Others reset when the tape is ejected or playback is restarted.

Returning to the default position matters because the adjustment required by one cassette may make the next tape look worse.

Why Do VHS Tapes Show Horizontal Static Lines?

Horizontal static lines usually appear when the VCR cannot follow the recorded video tracks accurately. However, several different problems can create similar symptoms.

Possible causes include:

• A tracking mismatch between the recording and the current VCR
• A tape recorded on a machine that was slightly out of alignment
• An EP or SLP extended-play recording
• Dirty or worn VCR heads
• A stretched, creased, or deteriorating tape
• Changes in the recording speed on the same cassette
• A worn VCR transport mechanism
• Signal instability present in the original recording

A band of noise near the bottom of the image can also be part of the VHS switching interval that older televisions hid outside the visible picture. Modern displays and video-capture devices may reveal more of the original frame than a tube television did. Tracking adjustment may reduce that noise, but it may not remove it completely.

How to Tell Whether the Tape or VCR Is the Problem

The safest diagnosis begins with patterns, not repeated playback.

Several Tapes Have the Same Problem

If multiple known-good tapes show similar distortion in the same VCR, the machine is the more likely cause. Its heads may be contaminated or worn, or its tape path may be mechanically misaligned.

Do not keep feeding valuable tapes into a machine that produces the same severe distortion, unusual sound, or transport problem with every cassette.

One Tape Has the Problem

If other tapes play normally but one cassette remains distorted, the cause may be:

• The alignment of the VCR that originally recorded it
• The recording speed
• A weak or deteriorated magnetic signal
• Physical damage to that cassette
• A change of recording source partway through the tape

Trying a second properly tested VCR may produce a better picture because individual decks have different playback tolerances. However, repeatedly testing a fragile recording in unverified machines adds risk.

The Distortion Always Appears at the Same Place

A repeatable problem at the same point may indicate a damaged section, recording interruption, crease, splice, or loss of recorded signal. Tracking adjustment cannot reconstruct information that is no longer readable.

The Picture Changes When Tracking Is Adjusted

If the static band moves or the picture improves as you adjust the controls, alignment is probably contributing to the problem. Once you find the best setting, avoid unnecessary additional playback and capture the recording while it remains accessible.

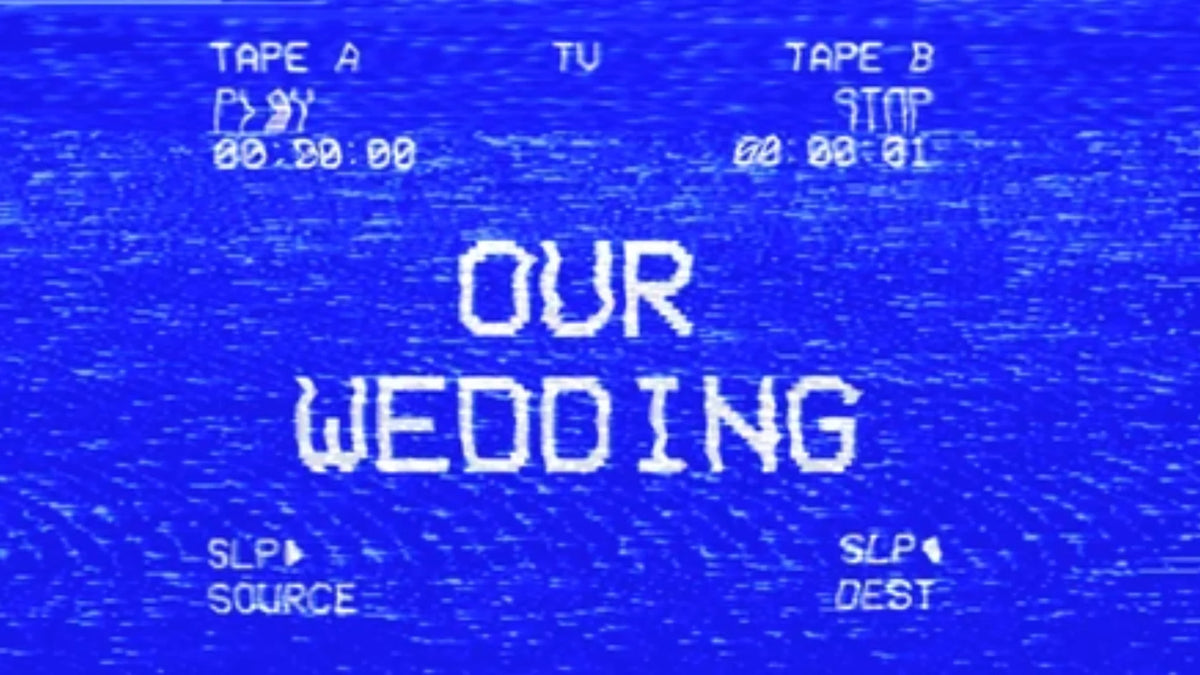

Why EP and SLP Recordings Are Harder to Track

VHS recording speeds are commonly identified as SP, LP, EP, or SLP. Extended modes allowed more programming to fit on one cassette by moving the tape more slowly.

The tradeoff was less recorded information for each moment of video and narrower margins for accurate playback. As a result, extended-play recordings are often:

• Softer and noisier
• More sensitive to tracking errors
• More dependent on the quality of the VCR
• Less stable when the tape has stretched
• More difficult to capture consistently

A cassette can contain more than one recording speed if someone changed the VCR setting between recordings. The picture may look stable during one family event and become distorted when the next recording begins.

Learn more about why SLP VHS recordings are harder to watch today.

Why Tracking Controls Sometimes Cannot Fix the Picture

Tracking only changes the relationship between the VCR heads and the recorded tracks. It cannot correct every form of analog-video instability.

Manual tracking will not repair:

• Mold or contamination
• Missing magnetic information
• A stretched or creased section of tape
• A broken cassette mechanism
• Severe timing instability
• Video-head wear
• Damage caused during an earlier playback
• Distortion present in the original camcorder recording

Some waviness, bending, or tearing comes from timing errors in the analog signal rather than basic tracking alignment. Specialized playback decks and time-base correction may stabilize recoverable video during digitization, but they cannot create picture information that has been physically or magnetically lost.

If simple tracking adjustment does not improve the picture, the solution is not necessarily more adjustment.

When Should You Stop Playing the Tape?

Stop playback immediately if:

• The VCR grinds, clicks, or changes speed
• The audio pitch rises and falls with irregular tape movement
• The picture suddenly disappears while the machine struggles
• The cassette repeatedly stops or ejects
• Tape begins emerging from the shell
• The VCR will not release the cassette
• You notice a musty smell or possible mold
• The tape squeals, sticks, or drags
• The same section becomes progressively worse with each attempt

A distorted picture does not automatically mean the recording is lost. In many cases, the video is still recoverable through a different playback deck, controlled adjustment, cassette repair, cleaning, or professional capture.

The greater danger is turning a playback problem into physical damage by repeatedly running the cassette through unsuitable equipment.

Should You Clean the VCR Heads Yourself?

Dirty video heads can produce snow, horizontal noise, or a missing picture, but head cleaning must be approached carefully.

Follow the VCR manufacturer’s instructions. If the manual approves a compatible cleaning cassette, use it only as directed. Excessive use can wear the heads, while some old or contaminated cleaning cassettes can make matters worse.

Do not remove the VCR cover and attempt to clean its rotating head drum with cotton swabs, household cleaners, or improvised materials. The video heads are small and fragile, and sideways pressure can damage them.

If the machine is important for preservation work or the symptoms persist across several tapes, servicing or replacing the playback deck is safer than experimenting with valuable recordings.

Can Digitization Preserve a Tape With Tracking Problems?

Often, yes. The success of the transfer depends on whether a usable signal remains and whether the tape can travel safely through an appropriate playback system.

A careful digitization workflow may involve:

• Inspecting the cassette before playback
• Evaluating the shell, reels, and visible tape
• Selecting a compatible playback deck
• Adjusting tracking for the best recoverable signal
• Stabilizing recoverable analog-video timing errors
• Monitoring the recording during capture
• Preserving the original 4:3 picture shape
• Checking the resulting digital file

Digitization does not make standard-definition VHS into true high-definition video. Its purpose is to create a faithful digital capture of the best surviving picture and sound before further tape or equipment deterioration makes playback more difficult.

Heirloom’s VHS-to-digital service begins with a free inspection and an itemized quote. Standard and damaged VHS tapes are identified separately, repairs are included whenever possible, and no paid work begins until you approve the quote. Tapes that cannot be recovered are not charged, and confirmed blank tapes receive a credit.

What Should You Do After a Successful Playback?

If tracking adjustment produces a watchable picture, treat that as an opportunity to preserve the recording—not proof that the cassette is healthy.

Avoid replaying it repeatedly for different relatives. Instead:

1. Capture the complete recording.
2. Review the beginning, middle, and end of the digital file.
3. Confirm that both picture and sound are present.
4. Preserve the original 4:3 aspect ratio.
5. Keep an accessible copy and at least one independent backup.
6. Retain the original cassette until the files have been reviewed and protected.

The Library of Congress guidance for audiovisual materials recommends careful handling, appropriate storage, and migration as playback formats and equipment become obsolete.
