The Floppy Disk: A Brief History

The evolution of technology has brought about a myriad of storage devices, each with its own unique history and impact. One such device that holds a special place in the annals of computing history is the floppy disk. In this article, we will delve into the fascinating journey of the floppy disk, exploring its invention, different sizes, and its impact on technology.



What is a Floppy Disk?

The invention of the Floppy Disk revolutionized the way data was stored and transferred in the early days of computing. A floppy disk, also known as a diskette, is a portable storage medium that consists of a thin, flexible magnetic disk sealed in a square or rectangular plastic casing. The disk is protected by a sliding metal door, which shields it from dust and damage.

The concept of the floppy disk was first developed in the late 1960s by IBM engineer Alan Shugart. Shugart envisioned a compact and portable storage solution that could be easily used with computer systems. This led to the creation of the first commercially viable 8-inch floppy disk, which was released by IBM in 1971.

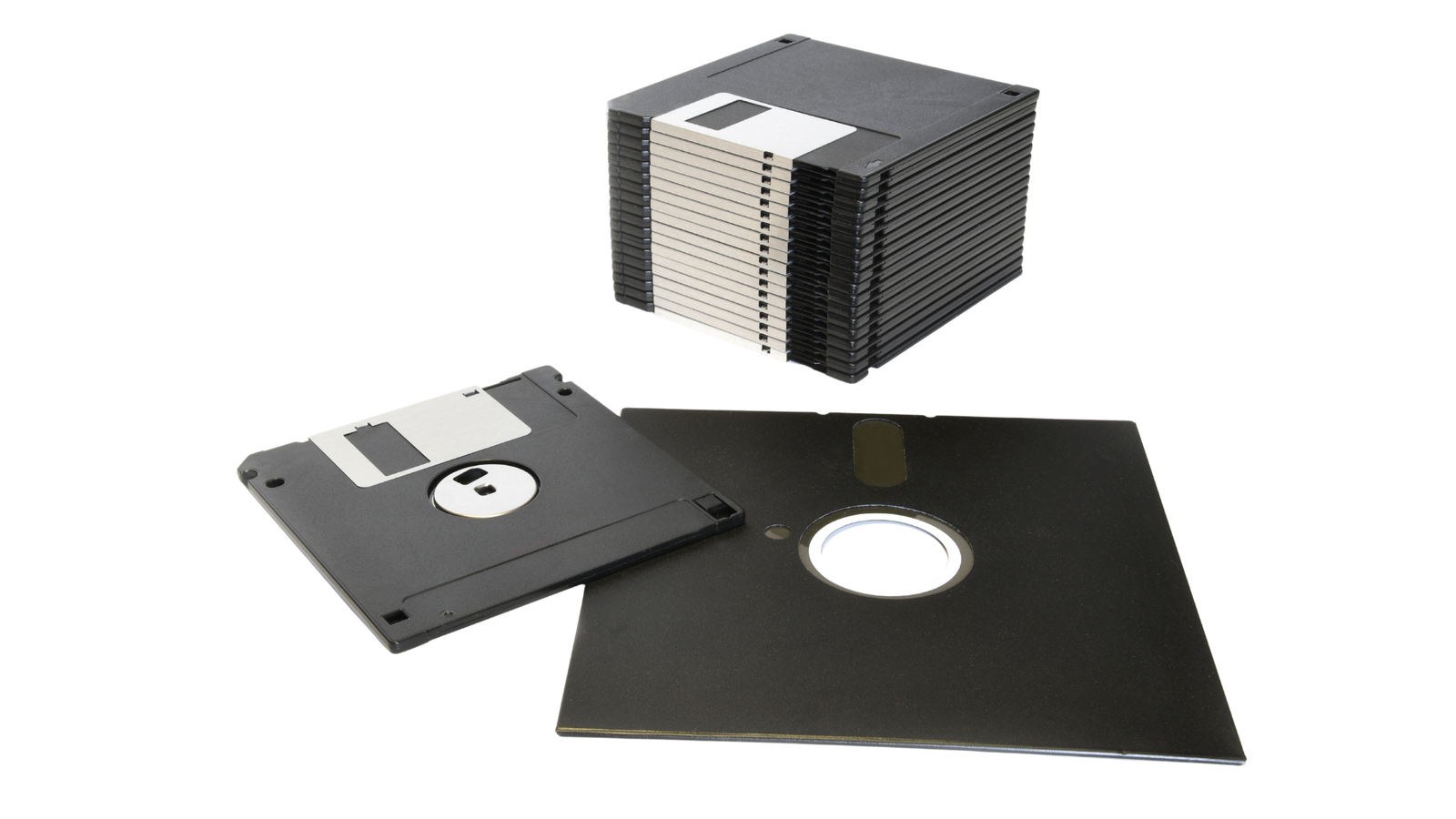

Different Sizes of Floppy Disks: 3.5 and 5.25

Floppy disks came in different sizes, with the most popular ones being the 3.5-inch and 5.25-inch disks. The 3.5-inch floppy disk, introduced by Sony in 1981, quickly gained popularity due to its smaller size and higher storage capacity compared to its predecessors. It became the standard for floppy disks, and its popularity lasted well into the 1990s.

The 5.25-inch floppy disk, on the other hand, was one of the earliest forms of floppy disk storage. Introduced by Shugart Associates in 1976, it quickly became a popular choice for early personal computers. The 5.25-inch floppy disk had a lower storage capacity compared to the later 3.5-inch disk, but it played a crucial role in the early days of computing.


The Function of the Floppy Drive

The floppy drive played a vital role in reading and writing data to and from floppy disks. It consisted of a motor, read/write heads, and a controller circuitry. When a floppy disk was inserted into the drive, the motor would spin the disk at a high speed, allowing the read/write heads to access the data stored magnetically on the disk's surface.

The read/write heads would move across the disk's surface, reading and writing data by detecting changes in magnetic polarity. The controller circuitry was responsible for interpreting the signals from the read/write heads and transferring the data to the connected computer system.



The Impact of the Floppy Disk on Technology

The invention of the floppy disk had a profound impact on the world of technology. It offered a revolutionary way to store and transfer data, replacing earlier storage methods such as punched cards and magnetic tape.


Evolution of Floppy Disk Storage Capacity

One of the notable aspects of the floppy disk's impact was its evolving storage capacity. The early floppy disks had a storage capacity of just a few kilobytes, but as technology advanced, so did the storage capacity of floppy disks.

The 5.25-inch floppy disk started with a capacity of 160 kilobytes and eventually reached a maximum capacity of 1.2 megabytes. The 3.5-inch floppy disk, on the other hand, initially had a capacity of 720 kilobytes and later increased to 1.44 megabytes.


Decline and Obsolescence of the Floppy Disk

As technology progressed, the limitations of the floppy disk became more apparent. The relatively small storage capacity and the slow data transfer speeds of floppy disks made them less practical for the increasing demands of modern computing.

The rise of other storage technologies, such as CD-ROMs, USB flash drives, and external hard drives, gradually rendered the floppy disk obsolete. By the early 2000s, floppy disks were no longer standard equipment on computers, and their usage declined significantly.



The Legacy of the Floppy Disk

Despite its decline and obsolescence, the floppy disk left an indelible mark on the world of technology. It paved the way for future advancements in portable storage and influenced the design of subsequent storage devices.

The concept of a portable, removable storage medium introduced by the floppy disk laid the groundwork for the development of USB flash drives and external hard drives. These modern storage devices owe their existence, in part, to the humble floppy disk.

The floppy disk holds a significant place in the history of technology. Its invention, different sizes, and impact on computing showcase the rapid evolution of storage technology. While it may no longer be a practical storage solution in today's world, the floppy disk will always be remembered as a pioneering piece of technology that shaped the way we store and transfer data.


Floppy Disk Data Recovery

Floppy disk data recovery has become a critical concern as these outdated storage mediums are prone to degradation and obsolescence. Retrieving data from floppy disks, which were widely used in the past, can be a challenging task due to hardware limitations and the fragility of the storage material. To avoid the risk of losing valuable information stored on floppy disks, it is advisable to transfer your data to the cloud using a professional disk transfer service.
