A VHS camcorder is a video camera that records directly onto magnetic videotape. Early models used full-size VHS cassettes, while smaller camcorders often used VHS-C, or compact VHS, tapes.
You can watch old VHS camcorder tapes in one of three ways:
- Play a full-size VHS tape in a compatible VCR.
- Play a VHS-C tape in a compatible VHS-C camcorder.
- Place an intact VHS-C tape into a VHS-C adapter and play it in a standard VHS VCR.
You can also connect a working camcorder directly to a television or video-capture device. However, the camera, playback equipment and tapes may all be decades old. Inspect everything before trusting the only copy of an irreplaceable recording to an untested machine.
For the complete preservation strategy, read our guide to protecting VHS tapes from deterioration, damage and loss.
What Is a VHS Camcorder?
A VHS camcorder combines a video camera and videocassette recorder in one portable device. The word “camcorder” comes from combining “camera” and “recorder.”
Instead of recording onto film or a digital memory card, the camcorder converts the image and sound into analog magnetic signals stored on videotape.
When recording, the camcorder:
- Captures the image through its lens
- Collects sound through its microphone
- Converts the picture and audio into electrical signals
- Records those signals magnetically onto tape
- Moves the tape at a controlled speed through the recording mechanism
When playing the tape, the process is reversed. Playback heads read the recorded magnetic signals and send picture and sound to the camera’s viewfinder, a television or another recording device.
Did VHS Camcorders Use Full-Size VHS or VHS-C?
Both types existed, and knowing which one you have determines how it can be played.
Full-Size VHS Camcorders

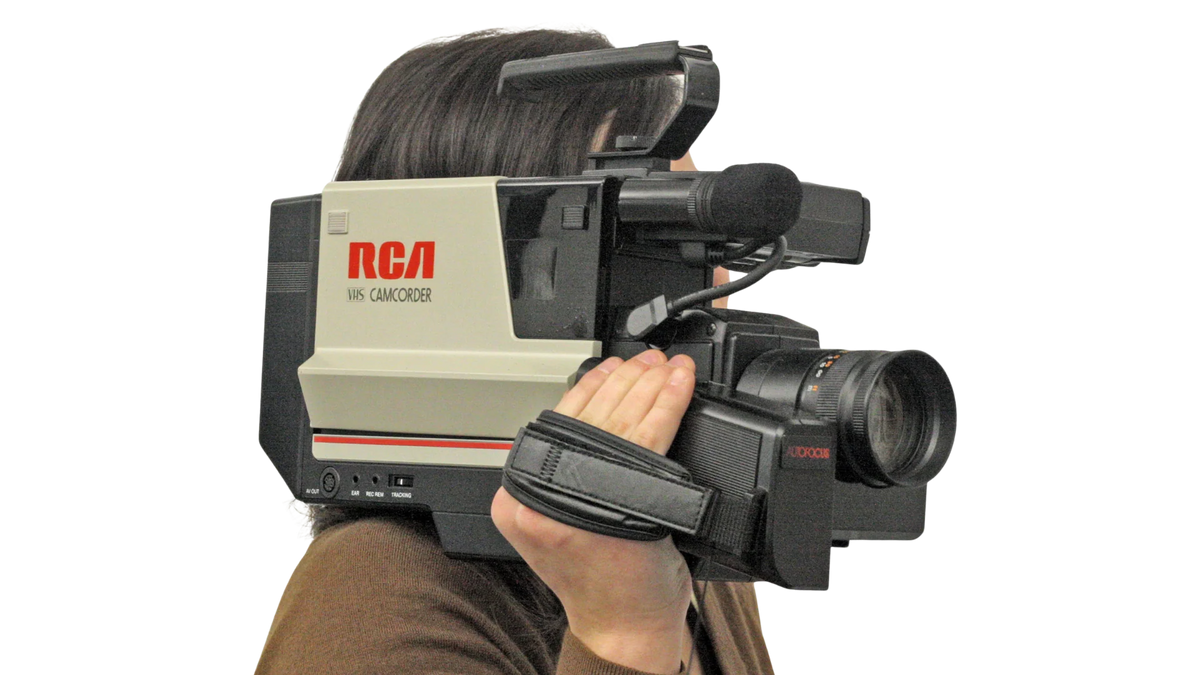

The earliest consumer VHS camcorders were large, often shoulder-mounted machines that accepted the same full-size VHS cassettes used in household VCRs.
Their advantage was compatibility. A family could remove the cassette from the camcorder and place it directly into a VHS VCR.
These camcorders were popular during the 1980s and early 1990s, but their size and weight made extended handheld recording difficult.
VHS-C Camcorders
VHS-C was introduced as a smaller camcorder format. The “C” stands for compact.
A VHS-C cassette uses the same basic recording system as VHS but contains less tape inside a smaller shell. It cannot be placed directly into a standard VCR.
To play VHS-C, you generally need:
- A compatible VHS-C camcorder, or
- A VHS-C cassette adapter inserted into a VHS VCR
The adapter changes the cassette’s physical size and positions the compact tape for the VCR. It does not electronically convert the recording.
How Can You Identify a VHS Camcorder Tape?
Start with the logo printed on the cassette.
A full-size VHS tape is approximately the size of a paperback book and should display the VHS logo. VHS-C tapes are much smaller and are usually labeled VHS-C or Compact VHS.
Do not identify a tape only by its size. Several camcorder formats are compact but incompatible.
Never force an unfamiliar cassette into a VCR or VHS-C adapter. If it does not fit naturally, stop and confirm the format.
How Do You Watch a Full-Size VHS Camcorder Tape?
A full-size VHS camcorder tape normally plays in a standard VHS VCR.
You will need:
- A dependable VHS VCR
- A television or monitor
- Composite AV cables or an appropriate converter
- The original VHS cassette
Before inserting the family tape:
- Inspect the cassette under good light.
- Look for mold, cracks, loose tape and uneven winding.
- Test the VCR with an expendable commercial cassette.
- Confirm that the machine can play, stop, rewind and eject.
- Listen for grinding, clicking or irregular movement.
- Check the expendable tape for damage after ejection.
Do not use an irreplaceable home movie as the test tape for a VCR taken from an attic, thrift store or long-term storage.
After the equipment passes the test, connect the VCR’s outputs to the television’s inputs. Yellow typically carries composite video, while white and red carry audio.
If the television accepts only HDMI, add a powered analog-to-HDMI converter between the VCR and television. That converter makes the signal compatible with the display; it does not turn VHS into high-definition video.
How Do You Watch a VHS-C Camcorder Tape?
A VHS-C cassette can be played through a compatible camcorder or a mechanical VHS-C adapter.
Option 1: Use the Original VHS-C Camcorder
If the camcorder still works, it may provide the most direct way to play its tapes.
You may need:
- The original AC power adapter
- A compatible replacement power supply
- The correct audio/video output cable
- A television, monitor or capture device
- An analog-to-HDMI converter for a newer television
Use AC power when possible. Original rechargeable batteries are often exhausted after decades and may no longer hold a charge.
Do not connect an arbitrary power supply simply because its plug fits. Voltage, current capacity and polarity must match the camcorder’s documented requirements. The wrong adapter can damage the camera or create a safety hazard.
Option 2: Use a VHS-C Cassette Adapter
A VHS-C adapter expands the compact cassette to the physical size of full-size VHS.
Some adapters require a battery to operate their loading mechanism. Before inserting an important tape:
- Inspect the adapter for corrosion.
- Install a fresh battery if required.
- Test the adapter with an expendable VHS-C tape.
- Confirm that the internal mechanism opens and closes smoothly.
- Make sure the tape is correctly seated.
- Stop if the adapter strains or fails to close.
Do not place a moldy, cracked, loose or improperly wound VHS-C cassette into an adapter. The adapter adds another mechanical system that can catch or damage a fragile tape.
A VHS-C adapter works only with VHS-C. It cannot play Video8, Hi8, Digital8, MiniDV or MicroMV.
Can You Watch VHS Through the Camcorder’s Video Output?
Many VHS and VHS-C camcorders have an AV output that can send video and audio directly to a television or capture device.
Depending on the model, the output may use:
- Yellow, white and red RCA connectors
- A 3.5 mm AV jack with a proprietary breakout cable
- S-Video plus separate audio
- An RF adapter
- A manufacturer-specific cable
Connect the camcorder’s AV OUT to the television’s AV IN. Then place the camera in VCR, Player or Playback mode rather than Camera or Record mode.
If the television has only HDMI inputs, use an active analog-to-HDMI converter in the proper direction:
Camcorder AV output → converter → HDMI cable → television
The picture may appear stretched on a widescreen television. Select 4:3, Original or Normal aspect ratio when available.
What If the VHS Camcorder Will Not Turn On?
A camcorder that has been stored for decades may fail because of the battery, power supply or internal electronics.
Begin with the least invasive checks:
- Remove the old battery.
- Inspect the battery compartment for corrosion or leakage.
- Confirm the exact camcorder model.
- Locate the specified AC adapter or a correctly rated replacement.
- Check the adapter’s voltage and polarity.
- Examine the power connector for damage.
- Follow the manufacturer’s instructions for playback mode.
Do not assume the camcorder itself is defective merely because the original battery is dead. Rechargeable batteries have a limited lifespan and are often unusable after long storage.
Do not open the camcorder unless you are qualified to repair electronic equipment. Internal capacitors can retain an electrical charge, and small mechanical assemblies can be damaged easily.
If the camera remains dead, the tape may still be playable in another compatible machine. You generally do not need the original camcorder to digitize ordinary VHS or VHS-C recordings.
What If You No Longer Have the Camcorder’s Cable?
Search using the complete manufacturer and model number printed on the camcorder. Cable connections varied, and two plugs that look similar may be wired differently.
Before purchasing a replacement, confirm:
- The camcorder model
- The connector type
- Whether the cable carries video, audio or both
- Whether the output is composite or S-Video
- The cable’s wiring or pin assignment
- Whether separate audio cables are required
A missing cable affects access through the camera, not the recording stored on the tape. A compatible VCR, adapter or professional playback deck may provide another path.
Why Does the Camcorder Play Video but No Sound?
Check the audio connections first.
A VHS camcorder may provide:
- Mono audio through one connector
- Stereo audio through white and red connectors
- Hi-Fi audio recorded with the video signal
- Linear audio recorded along the tape edge
- A proprietary AV cable carrying both picture and sound
If the picture appears but the sound does not:
- Confirm that the correct AV cable is being used.
- Check that the television is receiving audio from the same input.
- Try both white and red audio connections.
- Review the camcorder’s playback settings.
- Test with an expendable known-good tape.
If only one cassette lacks sound, the tape’s audio track may be weak or damaged. If every tape is silent, the cable, camcorder or television connection is more likely responsible.
Why Is the VHS Camcorder Picture Fuzzy or Unstable?
A poor image can result from the tape, the camcorder or the connection.
Possible causes include:
- Tracking differences
- Worn or dirty playback heads
- A weakening magnetic signal
- Tape stretching
- A recording made in EP or SLP mode
- Misalignment between the original recorder and current player
- Damaged tape edges
- Mold or contamination
- A failing analog-to-HDMI converter
- Incorrect television settings
A different compatible deck may reproduce the recording more successfully. However, do not repeatedly test an irreplaceable cassette in aging machines.
Stop playback if the camcorder or VCR grinds, changes speed, strains, spills tape or refuses to eject.
