Mini VHS Tape Converter: What Works—and What Can Damage Tapes

A mini VHS tape converter is not usually one device. To convert a VHS-C cassette, you need compatible playback equipment, a video-capture device, and a computer or standalone recorder that can save the signal as a digital file.

Two common setups work:

• A functioning VHS-C camcorder connected to a video-capture device
• A compatible VHS-C adapter placed in a tested VHS VCR, with the VCR connected to a capture device

A USB converter alone cannot play a tape. A VHS-C adapter alone cannot digitize one. Each component performs a different job.

The greatest risk is usually not the converter—it is playing an aging cassette in an untested camcorder, damaged adapter, or failing VCR. Before experimenting with an irreplaceable recording, identify the tape, inspect its condition, and test every mechanical device with expendable media.

For an overview of the format, begin with VHS-C tapes, camcorders, adapters, and conversion explained.

What Is a Mini VHS Tape?

“Mini VHS” is an informal name commonly used for VHS-C, or Video Home System–Compact.

VHS-C contains VHS-compatible analog magnetic tape inside a smaller cassette designed for camcorders. It can be played through the original camcorder or through a compatible VHS-C cassette adapter in a standard VHS VCR.

However, not every small videotape is VHS-C. Similar-looking formats include:

• Video8
• Hi8
• Digital8
• MiniDV
• MicroMV
• MiniDVD

These formats are not interchangeable. Video8, Hi8, Digital8, MiniDV, and MicroMV cannot play in a VHS VCR through a passive cassette adapter.

Before purchasing anything advertised as a mini VHS converter, read the label printed on the cassette. If it does not specifically say VHS-C, Compact VHS, or S-VHS-C, do not place it in a VHS-C adapter.

What Does a Mini VHS Tape Converter Actually Do?

The word “converter” is used for several different products, which makes online shopping confusing.

A complete conversion requires three separate functions.

1. The Playback Device Reads the Tape

The playback device physically moves the magnetic tape and produces an analog video and audio signal.

For VHS-C, that device is normally:

• A compatible VHS-C camcorder
• A VHS-C adapter inside a VHS VCR
• Specialized professional playback equipment

A capture card cannot perform this function because it has no tape mechanism.

2. The Capture Device Digitizes the Signal

A capture device receives analog video and audio from the camcorder or VCR and converts that signal into data a computer can record.

Common connections include:

• Composite video, normally using a yellow connector
• S-Video, when supported by the playback equipment
• Red and white analog audio connections
• USB between the capture device and computer

The capture device records what the playback equipment supplies. It cannot retrieve video that the camcorder or VCR cannot read.

3. Software Records the Digital File

Capture software records the incoming signal and saves it on the computer. The software may allow you to select resolution, file format, audio settings, and storage location.

The recording occurs in real time. A 60-minute VHS-C recording generally requires approximately 60 minutes of playback, plus time for setup, review, naming, and backup.

If you do not want to assemble and test this equipment, Heirloom’s VHS-C tape conversion service inspects the cassette first and provides an itemized quote before any paid digitizing work begins.

Which Mini VHS Converter Setups Work?

Several configurations can produce a usable digital file when the tape and equipment are in good condition.

Option 1: Use the Original VHS-C Camcorder

A compatible VHS-C camcorder may be able to play the cassette and send its signal directly to a capture device.

The setup normally requires:

• A working VHS-C camcorder
• The correct power supply
• Compatible audio and video cables
• A USB or standalone capture device
• A computer with capture software
• Sufficient digital storage

Using the original camcorder avoids a cassette adapter. It may also reproduce a tape more successfully when that recording was made on the same machine.

The difficulty is determining whether a decades-old camcorder remains safe. Powering on does not prove that its belts, rollers, guides, and loading mechanism work correctly.

Test the camcorder with an expendable cassette before using a family recording.

Option 2: Use a VHS-C Adapter and VCR

A compatible adapter positions a VHS-C cassette so that it can play in a full-size VHS VCR.

This setup requires:

• A functioning VHS-C cassette adapter
• A tested VHS VCR
• A capture device
• Compatible cables
• A computer and recording software

Some adapters operate mechanically, while others require a battery to load and position the tape. Inspect the battery compartment for corrosion and make sure the mechanism completes its movement smoothly.

A properly functioning adapter was designed for VHS-C playback and is not inherently harmful. The danger comes from damaged gears, weak batteries, misalignment, a failing VCR, or a fragile tape that should not be played without preparation.

Do not force the adapter closed. If the cassette does not seat normally or the mechanism stops partway, remove power and discontinue the attempt.

Option 3: Use a Standalone Video Capture Recorder

Some standalone capture devices record analog video directly to a memory card, USB drive, or internal storage without requiring a computer.

The playback requirement remains the same. You still need either:

• A VHS-C camcorder, or
• A VHS-C adapter and VHS VCR

The standalone device receives and records the signal. It does not replace the mechanical tape player.

Review its supported input connections, recording resolution, aspect-ratio handling, file format, and storage limits before purchasing it.

Option 4: Use a Professional VHS-C Service

Professional conversion removes the need to locate an old camcorder, purchase an adapter, test a VCR, configure software, and monitor each tape personally.

It may be the safer choice when:

• The recording is irreplaceable
• The cassette is stuck in an adapter
• The tape or shell is visibly damaged
• Mold or contamination may be present
• You do not have tested playback equipment
• The collection contains several tape formats
• Previous playback attempts have failed
• You have too many tapes to capture in real time
• You want the media inspected before approving the cost

A professional service should explain its inspection, repair, pricing, blank-tape, delivery, and unrecoverable-media policies before work begins.

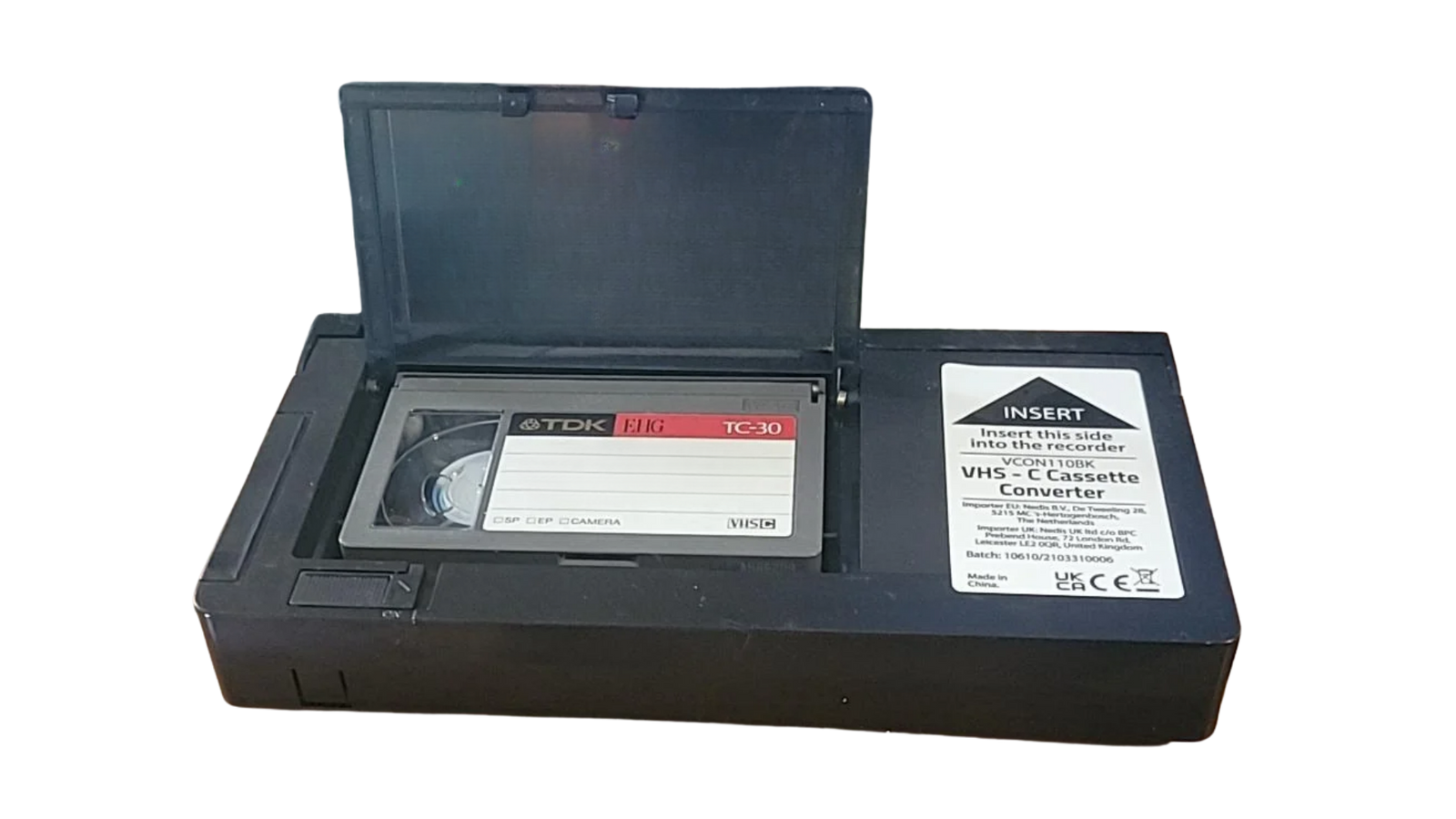

Will a VHS-C Adapter Convert the Tape to Digital?

No. An adapter only makes a VHS-C cassette physically playable inside a compatible VHS VCR.

It does not:

• Convert analog video into a digital file
• Connect directly to a computer
• Improve resolution
• Correct a weak magnetic signal
• Repair damaged tape
• Remove mold
• Create an MP4
• Make other small cassette formats VHS-compatible

To digitize the recording, the VCR’s video and audio outputs must still be connected to a capture device.

Can You Put an 8mm or MiniDV Tape in a VHS Adapter?

No. A VHS-C adapter works only with VHS-C or a specifically supported VHS-C-family cassette.

Video8, Hi8, and Digital8 use narrower 8mm tape and a different recording system. MiniDV is also a separate digital format. Their cassettes cannot be made VHS-compatible simply by placing them inside a larger shell.

Products or demonstrations claiming that a passive adapter can play any small camcorder cassette in a VHS VCR should be treated skeptically.

If you cannot identify the format, do not test whether it fits. Forcing the wrong cassette into an adapter can damage the cassette, the adapter, or both.

Can a USB VHS Converter Play a VHS-C Tape?

No. A USB converter is a capture interface, not a tape player.

The normal signal path is:

VHS-C tape → camcorder or adapter/VCR → capture device → computer

The camcorder or VCR reads the magnetic tape. The USB device converts the resulting analog signal. The computer records the digital file.

Many inexpensive capture products show a picture of VHS tapes on the package, which can make the device appear to replace a VCR. It does not.

Before buying one, make sure you already have safe, compatible playback equipment.

Can a Converter Improve VHS-C Picture Quality?

A capture device cannot create information that was never recorded or recover signal that has been permanently lost.

VHS-C is a standard-definition format. Its picture may contain:

• Soft detail
• Analog noise
• Color shifts
• Tracking lines
• Camera shake
• Low-light grain
• Audio hiss
• Brief signal loss

A good conversion aims to capture the best recoverable picture and sound faithfully. It should preserve the original 4:3 picture shape rather than stretch the image to fill a modern widescreen display.

Be cautious of products promising to convert VHS-C into true 1080p or 4K video. A device may save a larger file, but enlarging the frame does not create authentic detail that the tape never contained.

Later enhancement may improve how a copy looks, but preserve the faithful master first.

What Can Damage a Mini VHS Tape?

The most common dangers involve the mechanical playback system rather than the USB capture device.

Using an Untested Camcorder

Old camcorders may have hardened rollers, worn belts, deteriorated lubricants, or unreliable loading mechanisms. A machine can power on but still crease or trap the tape.

Using a Failing VHS-C Adapter

A weak battery, broken gear, corroded contact, or misaligned mechanism can stop the adapter while the tape is extended.

Never pull a cassette from a jammed adapter.

Using an Untested VCR

A VCR with worn belts, dirty components, or mechanical alignment problems may spill, stretch, crease, or trap the tape.

Test all transport functions with an expendable cassette first.

Playing a Moldy Tape

Mold may appear as white, gray, or fuzzy material visible through the cassette window. Playing a contaminated cassette can damage the recording and spread debris inside the camcorder, adapter, or VCR.

Every tape played afterward could then be exposed.

Forcing the Wrong Cassette Into an Adapter

A small cassette that looks similar to VHS-C may be Video8, Hi8, Digital8, MiniDV, or another format. An adapter is not a universal fit.

Repeated Playback Attempts

Every playback moves the tape under tension. Repeatedly testing a problematic cassette in different machines can turn a limited playback issue into physical damage.

Unnecessary Rewinding

Do not rewind an aging cassette simply to organize it or prepare it for conversion. Rewinding adds another full pass through mechanical equipment without preserving anything.

Inspect the Tape Before Using Any Converter

Look through the cassette windows under good light.

Stop before playback if you notice:

• White, gray, or fuzzy growth
• Moisture or water staining
• A musty odor
• Wrinkled or folded tape
• Loose tape inside the cassette
• Tape extending outside the shell
• An uneven tape pack
• A cracked housing
• A broken protective flap
• Loose internal pieces
• A reel that does not appear to move normally

Do not open the cassette, touch the magnetic tape, or apply household cleaners.

The Library of Congress guidance for audiovisual materials recommends careful handling and appropriate storage for magnetic media. Cleaning and repair require knowledge of the recording material and equipment involved.

How to Test a DIY Conversion Setup Safely

If the cassette appears clean and undamaged, prepare the complete system before using the important tape.

Test the Playback Device

Use an expendable cassette to confirm that the camcorder or VCR can:

• Load the tape normally
• Maintain stable playback
• Stop without pulling tape
• Rewind and fast-forward without struggling
• Eject the cassette cleanly
• Operate without grinding, clicking, or squealing

Test the Capture Path

Confirm that:

• Video appears in the capture software
• Both audio channels are present
• The correct input is selected
• The original 4:3 aspect ratio is maintained
• The software records without stopping
• The destination drive has sufficient capacity
• The saved test file opens and plays correctly

Monitor the Entire Transfer

Do not begin recording and leave the equipment unattended. Watch for:

• Tracking failure
• Audio loss
• A frozen picture
• Changes in tape speed
• Capture-software errors
• A stopped or full storage device
• Unusual mechanical sounds
• Tape movement problems

Stop immediately if the machine struggles.

When Should You Stop a VHS-C Conversion?

Discontinue playback if:

• The tape squeals or drags
• The camcorder or VCR repeatedly stops
• The cassette is ejected unexpectedly
• Audio pitch changes with irregular tape speed
• The picture disappears while the machine struggles
• Grinding or clicking begins
• Tape emerges from the cassette
• The cassette becomes stuck
• Mold or contamination becomes visible
• The same section becomes worse after another attempt

A distorted picture does not necessarily mean the recording is gone. A different playback system or controlled repair may still recover usable video.

Continuing to experiment is not always the best troubleshooting step.

DIY Converter or Professional Service?

DIY conversion can make sense when:

• You have only a few tapes
• The cassettes are clean and intact
• You own dependable playback equipment
• You can test everything with expendable media
• You understand analog video capture
• You have time to monitor each recording
• You can review, name, and back up the files

Professional conversion may make more sense when the collection is large, the equipment is missing, the tapes are questionable, or the recordings cannot be replaced.

Compare the total project, not only the price of a capture device. A home workflow may require a camcorder or VCR, adapter, cables, capture hardware, software, storage, troubleshooting, real-time playback, file review, and backups.

You Do Not Need to Buy a Mini VHS Converter First

Heirloom’s VHS-C to digital service begins with a free inspection. You can send the VHS-C cassettes without a camcorder or adapter.

If a cassette is already trapped in an adapter, send both together. Do not force them apart.

Heirloom will:

• Identify and inventory the media
• Inspect each cassette
• Distinguish standard and damaged media
• Provide a detailed, itemized quote
• Wait for your approval before paid work begins
• Include basic repairs whenever possible
• Credit tapes confirmed to be completely blank
• Not charge for tapes that cannot be recovered
• Normally create one 720 × 480 MP4 for each recorded tape
• Deliver files through a private digital vault
• Offer an optional USB copy

There is no upfront digitizing payment and no obligation after the inspection.

Preserve the Recording Instead of Collecting More Equipment

A mini VHS tape converter can work when every part of the system is compatible, tested, and functioning correctly. The key is understanding that the adapter, player, capture device, and software perform different jobs.

If the recording matters more than the equipment experiment, inspection before playback may be the safer path.

Explore Heirloom’s complete video tape conversion services, or review VHS-C digitizing options and the free-inspection process. You will receive an itemized quote and decide whether to proceed before any paid digitizing work begins.
