A Betamax converter is not a machine that accepts a Beta tape and instantly creates a digital file. Converting Betamax requires a working Beta player, video-capture hardware, compatible software and careful monitoring throughout playback.
The normal signal path is:
Betamax tape → compatible Beta player → capture device → computer → digital video file
Because Betamax is an analog format, the tape must play from beginning to end while the capture system records its picture and sound. A two-hour recording generally requires about two hours to capture.
Before choosing equipment, review the complete guide to Betamax history, playback and preservation. The converter can only capture the signal that a compatible player successfully reproduces.
What Equipment Does a Betamax Converter Require?
A complete do-it-yourself Betamax conversion setup normally includes:
- A compatible Betamax VCR or professional deck
- The correct video and audio cables

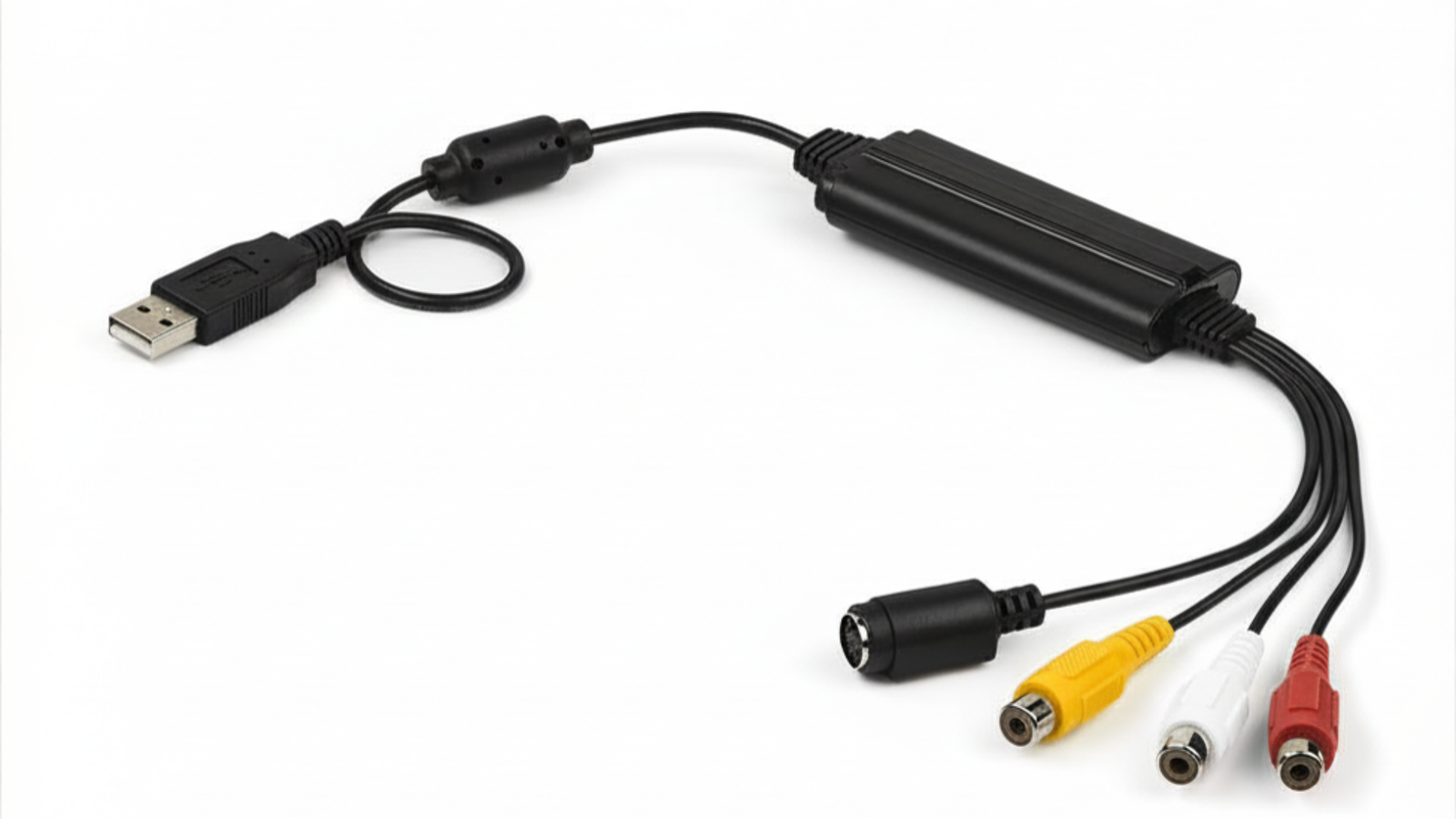

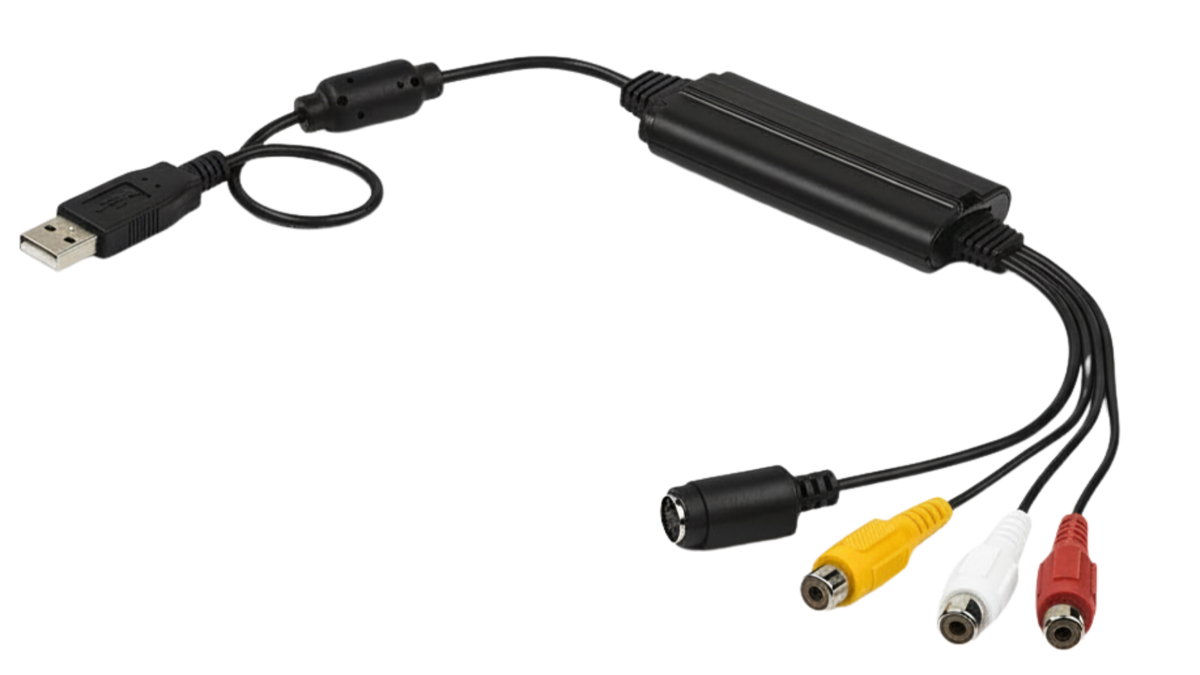

- An analog video-capture device
- A computer with sufficient storage
- Compatible capture software
- A display for monitoring playback
- A reliable power source
The Betamax player is the most important component. A USB capture device cannot play the cassette or compensate for a machine that damages the tape.
A player advertised as “powers on” may still have worn belts, hardened rollers, dirty heads, failing electronics or an unreliable loading mechanism. Before using it, confirm that it can load, play, rewind, fast-forward, produce picture and sound, and eject normally.
If you do not have tested playback equipment, Heirloom’s Betamax conversion service includes inspection and identification before any paid digitization begins.
Which Connections Can Transfer Betamax Video?
Most consumer Betamax machines output analog video through composite connections. These commonly use:
- Yellow for video
- White for the left audio channel
- Red for the right audio channel
Some Beta decks provide only mono audio, so they may use one audio connection. More advanced SuperBeta or ED Beta equipment may offer S-Video or other higher-quality outputs.
S-Video separates portions of the picture signal and may produce a cleaner capture when supported by both the player and capture device. It carries picture only, so the audio must still be connected separately.
Use the best native output that the functioning player and capture system share. An elaborate chain of adapters does not necessarily improve quality and can introduce additional points of failure.
Betamax does not use FireWire or HDMI as a native consumer-tape transfer connection. A passive cable cannot convert an analog Beta signal into USB or HDMI without active capture electronics.
How Do You Convert Betamax Tapes to Digital?
Begin with a tape and player inspection rather than immediately loading the most important cassette.
- Inspect the cassette. Look for mold, moisture, a cracked shell, loose tape or uneven winding.
- Test the player. Use an expendable Beta cassette before risking an irreplaceable recording.
- Connect the video output. Use composite or S-Video according to the available equipment.
- Connect the audio output. Confirm whether the source is mono or stereo.
- Connect the capture device to the computer.
- Open the capture software.
- Choose the correct video and audio inputs.
- Set the original 4:3 aspect ratio unless the source indicates otherwise.
- Begin recording in the software, then start tape playback.
- Monitor the complete transfer.
- Review the resulting file before putting away the equipment.
Power the Betamax player directly from a reliable electrical source. Close unnecessary computer programs so the capture system has enough resources to record without dropping frames.
Record a brief test before capturing the entire cassette. Confirm that the file includes picture and sound, uses the correct aspect ratio and remains synchronized.
What Capture Settings Should You Use?
The goal is to preserve the signal on the tape faithfully—not to make an old analog recording look artificially modern during capture.
Most consumer Betamax home recordings were created for a 4:3 display. If people appear unusually wide, the capture or playback setting may be stretching the image to 16:9.
A good capture should preserve:
- The original aspect ratio
- The complete visible picture
- The original frame rate
- Both available audio channels
- Audio and video synchronization
- The source’s interlaced motion information
- Stable brightness and color levels
Avoid aggressive noise reduction, sharpening or color correction during the initial capture. These processes can remove real picture information or create artifacts that cannot be undone.
Preserve a faithful master first. Create separate viewing or enhanced copies afterward.
Upscaling the file to 1080p or 4K does not recover detail that was never recorded. The most important gains come from stable playback, appropriate signal handling and careful quality review.
Why Does a Betamax Transfer Look Distorted?
A distorted capture does not automatically mean the converter is defective. Problems can originate with the tape, player, cables, capture hardware, software or computer.
Common symptoms include:
- Horizontal tracking lines
- Rolling or jumping video
- Faded or unstable color
- Picture noise
- Missing sound
- Audio from only one channel
- Audio drifting out of sync
- Dropped or repeated frames
- A black screen
- The player stopping unexpectedly
If the player’s menus appear clearly but the recorded footage does not, the problem is more likely related to tape playback, tracking or format compatibility.
If every tape has the same problem, investigate the player, cables and capture settings. If one tape fails while others play correctly, that cassette may require different tracking, repair or specialized recovery.
Do not repeatedly replay a struggling tape. Each pass places additional wear on the cassette and may worsen an existing crease, damaged edge or weak tape pack.
