8mm Tape Converter: How to Transfer Video8 & Hi8 to Digital

An 8mm tape converter is not usually one machine that accepts a cassette and produces a finished file. It is a complete system: a compatible Video8 or Hi8 camcorder or deck plays the recording, a capture device converts its analog signal, and software saves the video on a computer.

The capture device cannot play an 8mm tape by itself. You still need playback equipment that matches the recording, the correct cables, dependable capture software, sufficient storage, and time to monitor the transfer from beginning to end.

Before buying equipment, learn how to distinguish the formats in our pillar guide, 8mm video tapes explained: Video8 vs. Hi8 vs. Digital8.

What an 8mm Tape Converter Actually Does

The phrase “8mm tape converter” is used for several different products and services, including:

• USB video-capture devices
• Internal capture cards
• Standalone digital video recorders
• Cable-and-software packages
• Camcorders sold with capture equipment
• Digital8 FireWire transfer systems
• Professional tape-conversion services

A converter’s role is to capture the signal produced by a compatible player. It does not physically read the magnetic tape.

The basic signal path is:

8mm tape → compatible camcorder or deck → video-capture device → capture software → digital file

If the camcorder cannot play the recording, adding a USB converter will not solve the problem. Likewise, software cannot repair a jammed cassette, clean contaminated tape, or replace missing video information.

Which 8mm Formats Can Be Converted?

The 8mm camcorder family includes three principal formats:

Video8

Video8 is an analog format introduced during the 1980s. It requires a compatible Video8, Hi8, or certain backward-compatible Digital8 players.

Hi8

Hi8 is an improved analog format that can reproduce more picture detail than standard Video8. A Hi8 recording normally requires a Hi8 camcorder, Hi8 deck, or compatible Digital8 camcorder with analog playback support.

Digital8

Digital8 records digital DV video on the same general cassette design. It requires compatible Digital8 playback equipment.

A cassette’s label is only part of the identification process. A Hi8-branded cassette may have been recorded in Video8 or Digital8 mode. The recorded signal and the player’s capabilities ultimately determine compatibility.

Heirloom’s 8mm tape-to-digital service accepts Video8, Hi8, and Digital8, so you do not need to identify every cassette or find the original camcorder before sending your collection.

Equipment Needed to Convert Video8 and Hi8

A complete DIY conversion system normally requires the following components.

Compatible Playback Equipment

You need a functioning camcorder or deck capable of reproducing the recorded format.

Possible options include:

• The original Video8 or Hi8 camcorder
• A replacement camcorder with verified compatibility
• A dedicated 8mm videotape deck
• Certain Digital8 camcorders that support analog Video8 and Hi8 playback

Do not assume that every Digital8 camcorder plays analog recordings. Confirm compatibility using the exact model number and its documentation.

Whenever possible, power the camcorder with its AC adapter rather than depending on an old rechargeable battery. A battery that fails during capture can interrupt the recording or leave the tape loaded inside the machine.

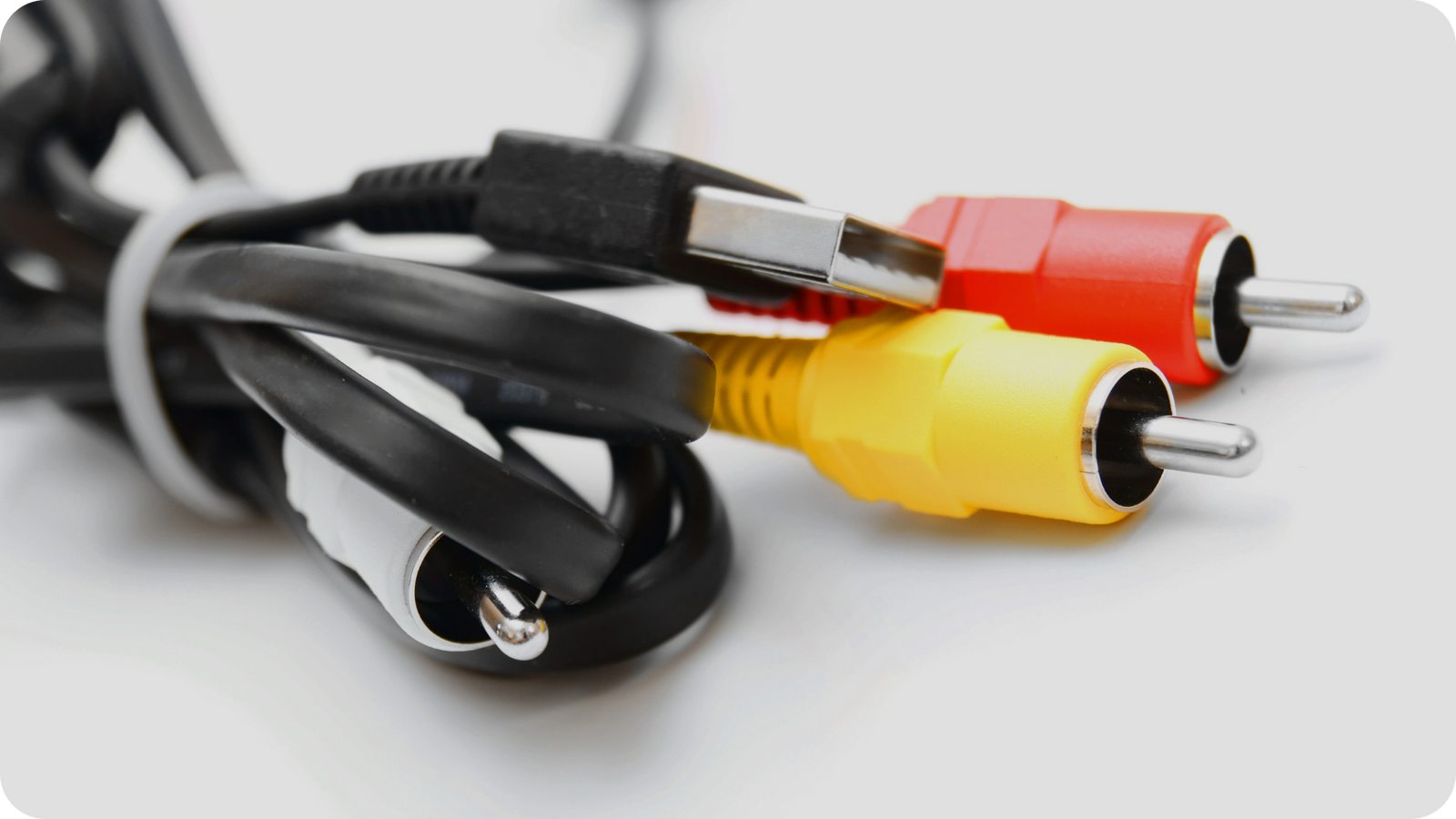

Video and Audio Cables

Analog Video8 and Hi8 equipment commonly provides one or both of these video outputs:

• Composite video, normally carried through a yellow RCA connector
• S-Video, carried through a small multi-pin connector

S-Video keeps portions of the picture signal separated and may provide a cleaner source when both the camcorder and capture device support it. S-Video carries picture only, so separate audio cables are still required.

Audio may be carried through:

• Red and white RCA connectors
• A stereo miniature output jack
• A manufacturer-specific cable supplied with the camcorder

Use the camcorder’s line-level audio/video output. A headphone connection may produce the wrong signal level and require manual volume adjustment.

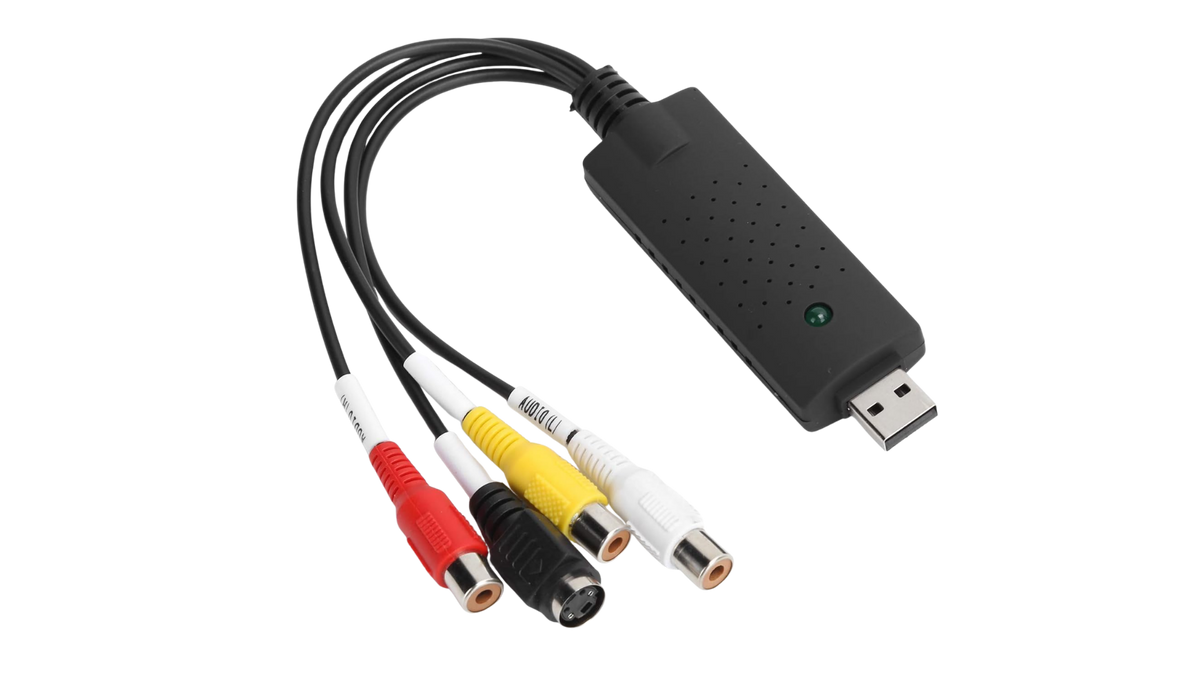

Analog Capture Device

The capture device receives the camcorder’s analog output and converts it into data the computer can record.

Depending on the device, it may connect through:

• USB
• Thunderbolt
• An internal expansion card
• A standalone recorder with removable storage

Capture devices vary considerably in picture handling, audio synchronization, driver support, and software compatibility. A product listing that says “VHS converter” may still accept a Video8 camcorder’s composite or S-Video output because the device captures a video signal rather than a specific cassette format.

However, it still cannot play a cassette without the camcorder or deck.

Capture Software

Capture software displays the incoming signal and records it as a digital file.

The software should allow you to:

• Select the correct video and audio source
• Monitor the recording while it plays
• Maintain the original picture shape
• Select appropriate video settings
• Detect obvious dropped frames or interruptions
• Stop and restart capture when necessary
• Name and save the completed files

Software bundled with inexpensive capture devices may be adequate, but confirm that it supports your operating system before purchasing hardware.

Computer and Storage

Video capture requires enough processing capacity and free storage to record continuously without interruption.

For more reliable results:

• Close unnecessary applications.
• Prevent the computer from sleeping during capture.
• Connect laptops to power.
• Save to a drive with ample available capacity.
• Avoid disconnecting the capture device while recording.
• Verify that the computer is recording both picture and sound.
• Keep a second storage location available for backups.

A successful capture is not protected until it has been reviewed and copied to another location.

Inspect the Tape Before Conversion

Every transfer requires playback, and playback physically moves the original tape through a machine. Inspect the cassette before loading it.

Look for:

• White, gray, or fuzzy contamination
• Loose tape inside the shell
• Tape protruding beneath the protective flap
• Uneven winding around the reels
• A cracked or separated housing
• A damaged protective door
• Moisture, residue, or debris
• Labels interfering with cassette openings

Do not insert a visibly moldy cassette into a clean camcorder. Contamination can spread through the tape path and affect other tapes played afterward.

The Library of Congress guidance for audiovisual materials recommends handling cassettes by their outer shells and using clean, well-maintained playback equipment.

If the tape looks damaged or contaminated, stop before attempting a DIY transfer.

Test the Camcorder Before Using an Important Tape

A camcorder that powers on is not necessarily ready for an irreplaceable recording. Belts, rollers, gears, capacitors, loading mechanisms, and tape guides can deteriorate during storage.

Test unfamiliar equipment with an expendable cassette first.

Confirm that the camcorder can:

• Accept and eject the cassette normally
• Play without grinding or repeated clicking
• Rewind and fast-forward smoothly
• Produce stable picture and sound
• Operate from its AC power supply
• Maintain consistent speed
• Complete a full test capture

Stop if the camcorder squeals, grinds, repeatedly ejects the cassette, changes speed unexpectedly, or leaves tape outside the shell.

Connecting an Analog 8mm Tape Converter

Once the cassette and camcorder have been inspected, connect the system before inserting the important tape.

Step 1: Connect the Camcorder to Power

Use the correct manufacturer-approved AC adapter whenever possible. Confirm that the camcorder operates reliably without depending on an aging battery.

Step 2: Choose the Best Available Video Output

Use S-Video if the camcorder and capture device both support it. Otherwise, connect the composite-video output.

Do not connect both S-Video and composite video simultaneously unless the capture hardware specifically instructs you to do so.

Step 3: Connect the Audio

Connect the camcorder’s left and right audio outputs to the capture device. If the camcorder records mono sound, the available cable or device may duplicate that signal across both channels.

Step 4: Connect the Capture Device

Install any required drivers before opening the capture software. Then connect the device and verify that the software recognizes it as a video and audio source.

Step 5: Select the Correct Video Standard

The capture settings must match the recording’s television system:

• NTSC for most tapes recorded in the United States, Canada, Japan, and certain other markets
• PAL for tapes recorded in many European, Asian, African, and Australian markets
• SECAM for recordings from some countries and regions

Using the wrong standard can produce rolling, black-and-white, distorted, or completely absent video.

Step 6: Preserve the Original Picture Shape

Most Video8 and Hi8 home movies were recorded in a standard-definition 4:3 aspect ratio.

Do not stretch the picture to fill a modern 16:9 screen. Increasing the file dimensions also does not create true high-definition detail. Preserve the original image shape and capture the best signal the tape still contains.

Step 7: Make a Short Test Recording

Capture one or two minutes before committing to the entire tape. Review the test for:

• Picture stability
• Correct color
• Audible sound
• Audio synchronization
• Proper aspect ratio
• Dropped or repeated frames
• Unwanted borders or cropping
• Adequate recording level

A clear preview window does not guarantee that the file is being recorded correctly. Open and play the saved test file before continuing.

Capture the Entire Tape in Real Time

Analog Video8 and Hi8 conversion occurs in real time. A 90-minute recording generally requires approximately 90 minutes to play and capture, followed by time for review, naming, and backup.

During capture:

• Monitor the tape’s physical movement.
• Watch for picture loss or repeated interference.
• Listen for changes in sound or tape speed.
• Confirm that the software continues recording.
• Avoid using the computer for unrelated tasks.
• Note any sections that may require another playback attempt.
• Stop if the camcorder makes unusual mechanical noises.

Do not leave an unfamiliar camcorder unattended with an irreplaceable tape.

Common DIY Conversion Problems

No Picture

A blank preview may result from:

• The wrong input selected in the software
• A disconnected or damaged cable
• An incompatible camcorder
• A tape recorded in another format
• An NTSC/PAL mismatch
• A cassette with no recorded content
• A section of tape without video

Confirm the connections and format before assuming the recording has been lost.

Picture but No Sound

Check that the audio cables are connected to the capture device rather than the computer’s unrelated microphone input. Verify that the correct audio source is selected in the software.

If using S-Video, remember that it carries no audio.

Audio Drifts Out of Sync

Long captures may develop synchronization problems because of unstable playback, dropped frames, capture-device timing, software configuration, or computer performance.

A short test may look correct even when a longer recording develops noticeable drift. Review the beginning, middle, and end of every completed file.

Dropped or Repeated Frames

Dropped frames can result from:

• An unstable tape signal
• A struggling camcorder
• Insufficient computer performance
• Slow or nearly full storage
• Driver problems
• Inexpensive capture hardware
• Other software interrupting the recording

Dropped frames can produce jerky movement and contribute to audio-sync problems.

A Noisy or Unstable Picture

Flickering, color shifts, horizontal noise, or intermittent picture loss may originate in:

• The original recording
• Tape deterioration
• Dirty playback heads
• Differences between the recording and playback camcorder
• An extended recording mode
• Damaged cables
• The capture device
• Incorrect video-standard settings

A capture device records the signal it receives. It cannot restore information that the player is not successfully reproducing.

What About Digital8?

Digital8 recordings can often be transferred through a compatible camcorder’s IEEE 1394 connection, also known as FireWire or Sony i.LINK.

When the necessary hardware and software remain compatible, this transfers the recorded DV data without converting it to an analog signal first.

The challenge is that most modern computers no longer include native FireWire connections. A functional workflow may require:

• A compatible Digital8 camcorder
• The correct i.LINK or FireWire cable
• A computer or expansion card with IEEE 1394 support
• Compatible capture software
• An operating system that recognizes the camcorder

Not every modern USB adapter can carry a FireWire video signal. A cable that physically connects two ports does not necessarily translate between their different communication standards.

Some Digital8 camcorders also provide composite or S-Video output, allowing the recording to be captured through an analog device. This can be useful when a digital connection is unavailable, although it adds an analog conversion to the signal path.

Reviewing and Protecting the Digital Files

Do not assume a transfer succeeded merely because the software created a file.

Review:

• The beginning of the recording
• Several points throughout the middle
• The end of the file
• Picture and sound synchronization
• Any sections where the tape or signal appeared unstable
• The file’s complete duration
• The aspect ratio and orientation

Give the file a useful name based on the cassette label and anything learned during playback. Avoid permanently changing the original capture before creating a separate master copy.

Keep at least two copies of the completed files on independent storage systems. Retain the physical tapes until the files have been reviewed and backed up.

When Professional Conversion Is the Better Decision

DIY conversion may be practical when you have a few healthy tapes, a confirmed compatible camcorder, reliable capture equipment, and enough time to monitor every recording.

Professional help may be more appropriate when:

• The recordings cannot be replaced.
• You no longer own a compatible camcorder.
• Available playback equipment is untested.
• The collection includes Video8, Hi8, and Digital8.
• The tapes are unlabeled or incorrectly labeled.
• Mold, residue, or shell damage is visible.
• A cassette has jammed or failed during playback.
• You have many hours of footage.
• You are experiencing dropped frames or audio drift.
• You want inspection and an itemized quote before proceeding.

Heirloom’s professional 8mm tape conversion service begins with inspection and identification. You do not have to sort Video8 from Hi8 or Digital8, count everything in advance, or locate the original camcorder.

How Heirloom Converts 8mm Tapes

Heirloom’s process includes:

1. Inventorying and identifying each item
2. Inspecting the cassette before digitization
3. Separating standard and damaged media
4. Preparing a detailed, itemized quote
5. Waiting for your approval before paid work begins
6. Completing basic repairs whenever possible
7. Capturing and reviewing approved recordings
8. Delivering accessible digital files

There is no upfront digitizing payment and no obligation after inspection. Tapes that cannot be recovered are not charged, and cassettes confirmed to be blank receive a credit.

Each recorded 8mm tape is normally delivered as an individual 1280 × 720 MP4 file in a private digital vault. Files can be streamed, downloaded, and shared during the included access period. An optional USB copy is also available.

The delivered file does not manufacture detail that the original camcorder never recorded. The goal is to create a strong, faithful, and accessible capture of the recoverable recording.

Families may also send VHS, VHS-C, MiniDV, film, photographs, audio, and other media in the same shipment. See all accepted formats through Heirloom’s video tape conversion services.

Preserve the Recording Without Building a Conversion Studio

An 8mm tape converter can work well when every part of the system is compatible and dependable. But the capture device is only one component. You still need a safe tape, the correct player, stable output, accurate settings, real-time monitoring, file review, and backups.

If assembling that system feels like too much—or the recordings are too important to use as test tapes—Heirloom can take the uncertainty out of the process.

Send your Video8, Hi8, and Digital8 tapes for inspection. Heirloom will identify what you have, explain what can be recovered, and provide an itemized quote before paid work begins.

Send your 8mm tapes for a free inspection.
